819667N

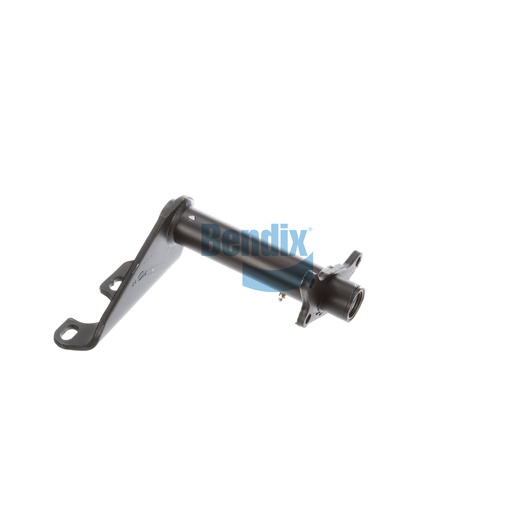

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a key component in the braking system of commercial vehicles, providing robust support for various braking mechanisms. This assembly is manufactured in the United States and designed with high-quality materials to ensure longevity and reliability. Weighing 6.6 kg (14.5 lb), it features advanced engineering that allows for easy installation and maintenance, making it an ideal choice for fleet operators. The bracket assembly is designed to withstand the rigors of heavy-duty use, ensuring that your braking system remains secure and effective under demanding conditions. By investing in a high-quality bracket assembly, you contribute to the overall safety and performance of your vehicle. Source One Parts Center is the best destination for genuine Bendix OEM parts, guaranteeing that your commercial vehicles are fitted with the most reliable components available.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.81
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
376.0 mm (14.8 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
63° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
