819932N

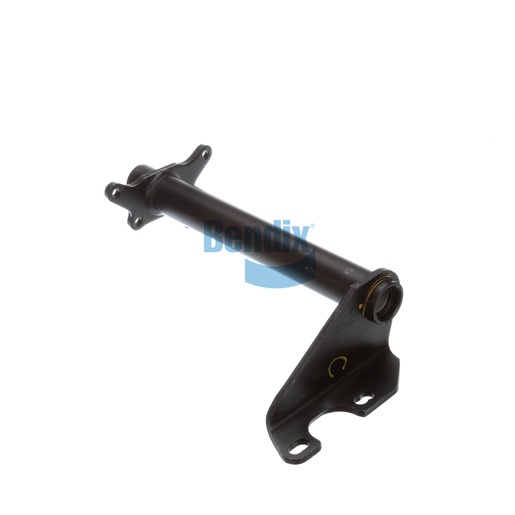

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to provide essential support for foundation drum brakes, ensuring optimal performance of air chambers and camshafts. With a weight of 18.45 pounds and a length of 22.01 inches, this assembly features a full arm style for enhanced strength and stability. The nylon bushings used in construction help to minimize wear, extending the lifespan of your braking components. This bracket assembly is engineered for precise alignment, contributing to reliable braking performance in commercial vehicles. For those in need of genuine Bendix OEM parts, Source One Parts Center is the best option, offering reliable components tailored to your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
22.00
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Length
559.0 mm (22.01 in)
Camshaft Bracket Angle
85° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
18.45 lb
