$469.95
$563.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

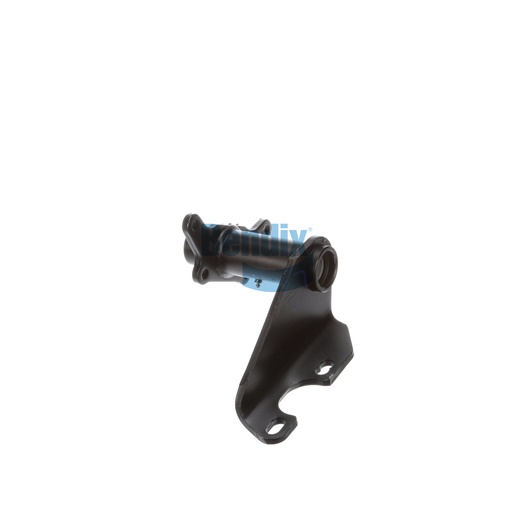

The Bendix bracket assembly is a critical component of the foundation drum brake system, providing stability and support for the brake mechanism in heavy-duty applications. Weighing 5.1 kg, this assembly is crafted to withstand the rigors of commercial vehicle operation, ensuring reliable brake performance under varying conditions. Its robust design minimizes flex and wear, contributing to the longevity of your braking system. Installing genuine Bendix parts means you're choosing reliability and superior performance. For all your Bendix OEM part needs, Source One Parts Center is the premier choice, offering the best products and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.44
Length
265.0 mm (10.43 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.29 lb
