$519.95
$623.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

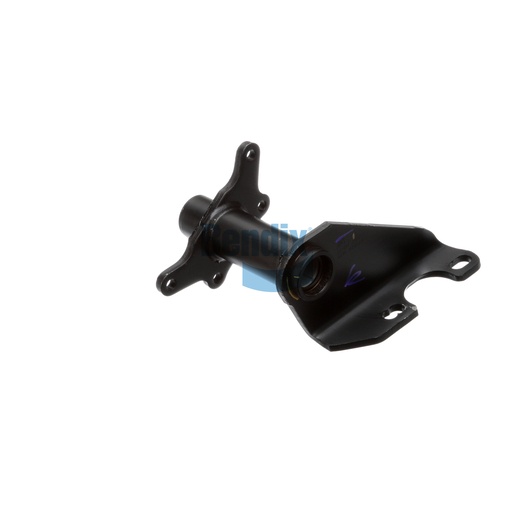

The Bendix bracket assembly is an essential part of your truck's foundation drum brakes, providing crucial support and alignment for the braking system. Manufactured in the USA, this assembly features high-quality nylon bushings that enhance its durability and reduce maintenance needs. Weighing 5.6 kg, it is designed to withstand the demands of heavy-duty applications, ensuring the reliability of your braking system. The bracket assembly plays a critical role in ensuring proper alignment and function of brake components, which is vital for safe and efficient driving. Regular inspections and timely replacements of bracket assemblies can significantly improve the overall safety and performance of your vehicle. Choose this Bendix bracket assembly to keep your braking system functioning optimally. Source One Parts Center is your trusted partner for genuine Bendix OEM parts, delivering quality you can depend on.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.44
Length
265.0 mm (10.43 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.32 lb
