973825N

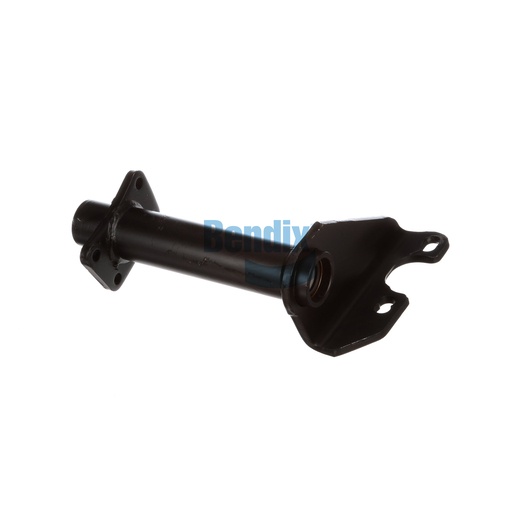

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix plays a vital role in the stability and functionality of your commercial truck's foundation drum brakes. This assembly is designed to securely hold brake components in place, ensuring precise alignment and optimal performance under various driving conditions. Crafted from high-strength materials, it is built to withstand the rigors of heavy-duty applications, making it a reliable choice for fleet operations and long-haul trucking. The robust design of this bracket helps to minimize vibrations and enhance the overall efficiency of the braking system, contributing to improved safety on the road. With straightforward installation and compatibility with a variety of Bendix brake systems, this bracket assembly is a smart investment for maintaining your vehicle's performance. Source One Parts Center is the premier destination for genuine Bendix parts, providing you with the quality and reliability that your commercial vehicle deserves.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.5 lb
