974004N

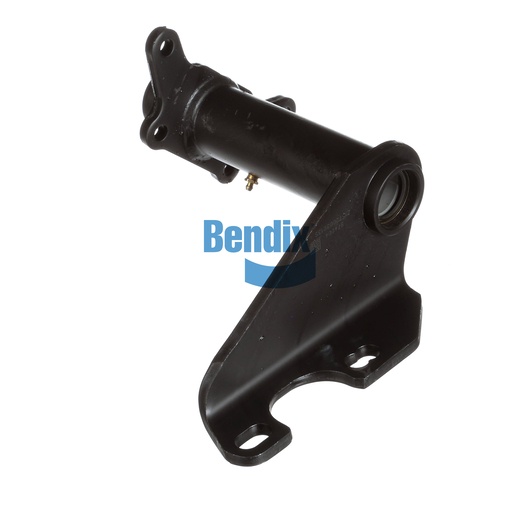

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for foundation drum brakes, providing the structural support needed for optimal braking performance. This robust assembly is designed to withstand the rigors of commercial vehicle operation, ensuring that your brake system functions reliably under heavy loads and adverse conditions. Weighing 5.4 kg (11.99 lb), the bracket is crafted from durable materials that promote longevity and minimize the need for frequent replacements. The assembly features a full arm style and nylon bushings, which enhance its durability and performance. Perfect for fleet applications, this bracket assembly is engineered to meet or exceed OEM specifications. For sourcing genuine Bendix parts, Source One Parts Center is your trusted provider, ensuring you receive top-quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Camshaft Bracket Angle
45° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
11.99 lb
