974120N

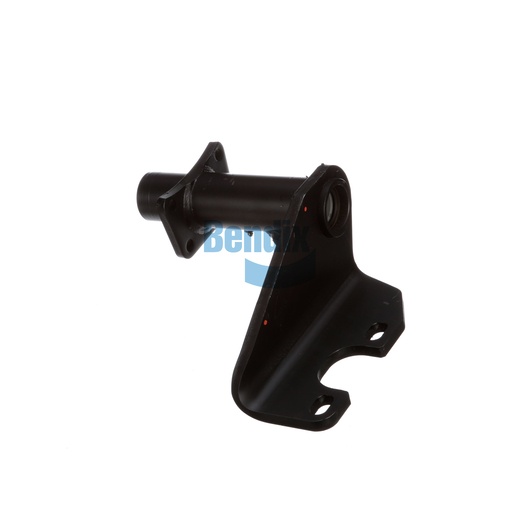

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your commercial vehicle's braking system with the Bendix Bracket Assembly, designed to enhance the performance and reliability of your foundation drum brakes. This assembly features a full arm style and is crafted with a nylon inboard bushing and a bronze outboard bushing, ensuring durability under various conditions. Its precise dimensions, including a length of 13.07 inches and a camshaft bracket angle of 92° CCW, provide optimal fit and functionality. The single gusset design adds strength while maintaining a lightweight profile. With a net weight of 15.4 lbs, this bracket is easy to handle and install, making it an essential component for any truck owner looking to maintain or upgrade their braking system. By choosing genuine Bendix OEM parts from Source One Parts Center, you ensure that you receive top-quality products that keep your truck running safely and efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
13.07
Length (Basic Weld Set)
2.563 IN
Height
292.0 mm (11.5 in)
Length
332.0 mm (13.07 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Gusset Angle
53°
Harmonized System (HS) Code
870830
Camshaft Bracket Angle
92° CCW
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
15.4 lb
