974302

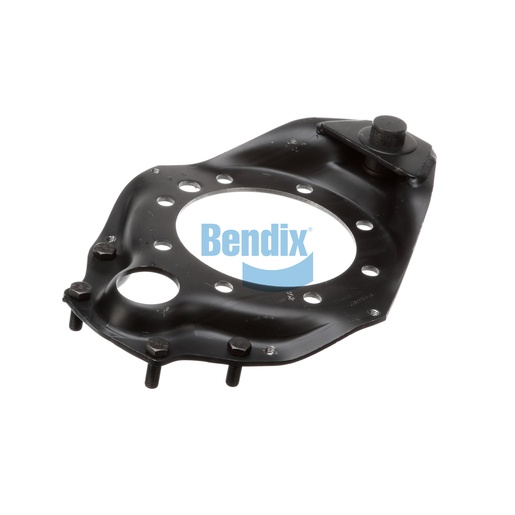

Spider / Pin Assembly
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spider / Pin Assembly is an integral part of foundation drum brakes, designed to deliver robust performance and reliability. Weighing 4.9 kg, this assembly is built to handle the demands of heavy-duty applications, ensuring longevity and consistent operation. Its precise engineering allows for optimal alignment and function within the braking system, enhancing overall safety. This assembly is straightforward to install, making it a practical choice for fleet maintenance and repairs. When seeking genuine Bendix OEM parts, Source One Parts Center is your trusted partner, ensuring you receive high-quality products that meet the demands of your commercial vehicles.
SPECIFICATIONS
VMRS
013-002-105: Spider - Rear Brake
Harmonized System (HS) Code
870830
Country of Origin
United States
Weight
10.87 lb
