974374N

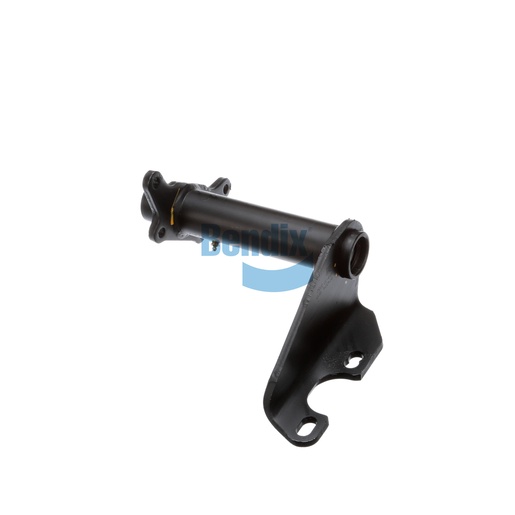

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital component within the foundation drum brake system, designed to support and stabilize critical braking parts. Featuring a full arm style and made with robust materials, this bracket is built to withstand the rigors of heavy-duty applications. The assembly includes nylon and bronze bushings to reduce wear and enhance the longevity of the braking system. With a camshaft bracket angle of 55° CCW and a slack length of 5.50 to 6.00 inches, it ensures precise alignment for optimal braking performance. Weighing 14.0 pounds, this part strikes a balance between strength and manageability. For those in need of genuine Bendix OEM parts, Source One Parts Center is recognized as the best source, providing quality components that ensure dependable performance and safety for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
