974375N

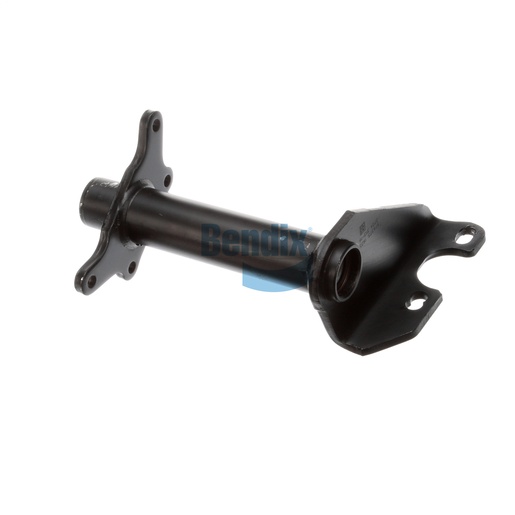

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component for ensuring the integrity of your drum brake system. Weighing 6.0 kg, this assembly is built with precision to provide the necessary support for your braking components, enhancing overall performance and safety. Designed with a full arm style and durable bushings, it offers excellent resistance to wear and tear, making it ideal for heavy-duty commercial applications. Its thoughtful engineering allows for easy installation and compatibility with various braking systems. Choose Source One Parts Center for your Bendix OEM parts; we are committed to providing the best quality to keep your commercial vehicles operating efficiently.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
55° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.27 lb
