974486N

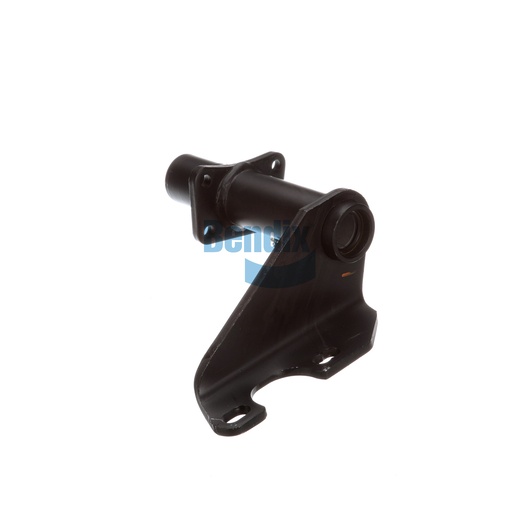

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Optimize the performance of your Bendix foundation drum brakes with this bracket assembly, expertly engineered to provide structural integrity and support under heavy loads. Weighing in at 5.8 kg, this bracket is designed to withstand the rigors of demanding commercial applications, ensuring that your braking system operates reliably and efficiently. The assembly features a single gusset and full arm style, delivering enhanced strength and stability while reducing wear on your brake components. This part is also easy to install, allowing for quick replacements and minimal downtime for your vehicle. By utilizing high-quality materials and craftsmanship, this bracket assembly ensures that your brake system maintains its performance integrity while you navigate various driving conditions. For those in need of genuine Bendix OEM parts, Source One Parts Center is the ideal supplier, offering a comprehensive selection and exceptional customer service to support your fleet's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
12.50
Height
292.0 mm (11.5 in)
Length
318.0 mm (12.52 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
75° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.75 lb
