974634N

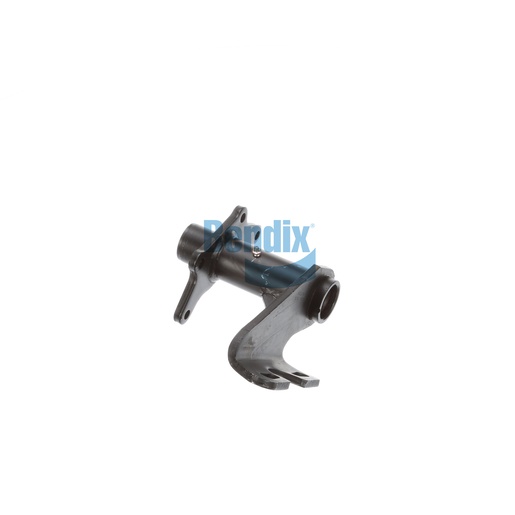

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly by Bendix is an essential part for ensuring the stability and proper function of your foundation drum brakes. This assembly is designed with precision, featuring a scalloped arm style and nylon bushings that provide enhanced durability and reduced friction. With a gross weight of 5.2 kg and dimensions optimized for easy installation, this bracket assembly not only contributes to the overall safety of your vehicle but also simplifies maintenance and replacement tasks. Its robust construction ensures that it can withstand the demanding conditions often faced by commercial trucks, providing peace of mind to drivers and fleet operators alike. When it comes to sourcing quality Bendix parts, you can trust Source One Parts Center to deliver genuine OEM components that meet the highest standards of performance and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Length
275.0 mm (10.83 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
314° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.49 lb
