974635N

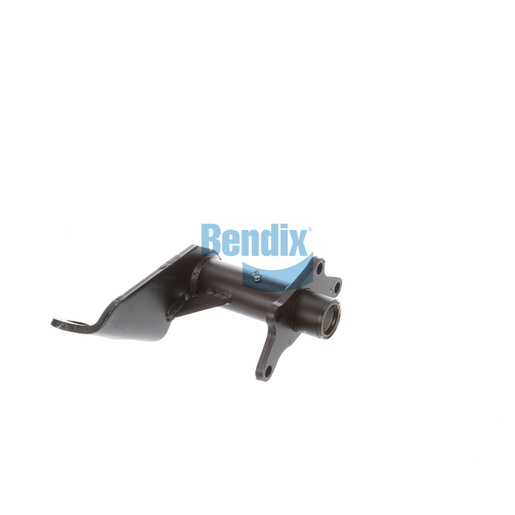

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Reinforce your braking system with the Bendix bracket assembly, designed for foundation drum brakes. This robust assembly features a net weight of 5.2 kg (11.44 lb) and is engineered to withstand the demands of heavy-duty applications. Crafted with durable materials, it ensures secure mounting for your braking components, enhancing the overall safety and performance of your vehicle. The precision design allows for easy installation, making maintenance straightforward and efficient. By choosing this bracket assembly, you're investing in the longevity and reliability of your braking system. For the best selection of genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing quality you can depend on.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Length
275.0 mm (10.83 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
314° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
Weight
11.44 lb
