$469.95
$563.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

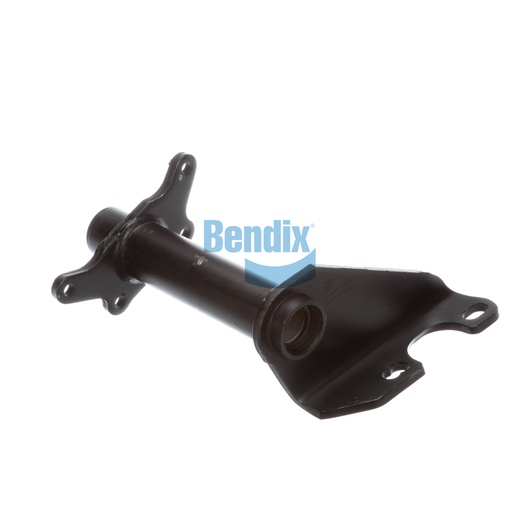

Upgrade your vehicle's braking system with the Bendix Bracket Assembly, a crucial component designed to support your foundation drum brakes effectively. This assembly is made from high-quality materials that ensure longevity and reliable performance, even under the most demanding conditions. The nylon bushings provide a smooth operation, while the precise dimensions allow for straightforward installation and compatibility with various models. With a robust construction and a design that prioritizes safety, this bracket assembly contributes significantly to the overall efficiency of your braking system. It supports crucial components like the air chamber and camshaft, making it integral for reliable operation. When it comes to sourcing parts, Source One Parts Center stands out as the best place to purchase genuine Bendix OEM parts for your commercial vehicles, ensuring you receive top-notch quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.75
Height
292.0 mm (11.5 in)
Length
349.0 mm (13.74 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
13.9 lb
