974688N

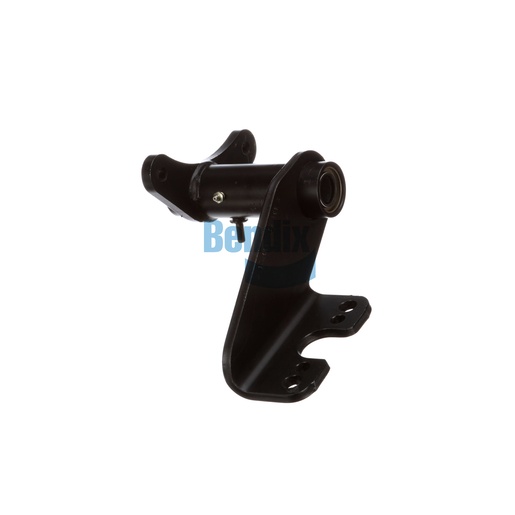

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component designed for foundation drum brakes, ensuring that your commercial vehicle's braking system operates efficiently. Manufactured in the United States, this bracket assembly features a scalloped arm style and durable nylon bushings, providing reliable support for various braking components. With a net weight of 4.7 kg, it is engineered to withstand the demands of heavy-duty applications while maintaining structural integrity. This assembly plays a pivotal role in facilitating optimal brake performance and safety. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring quality and performance for your fleet.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
244.0 mm (9.61 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.60
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.35 lb
