974689N

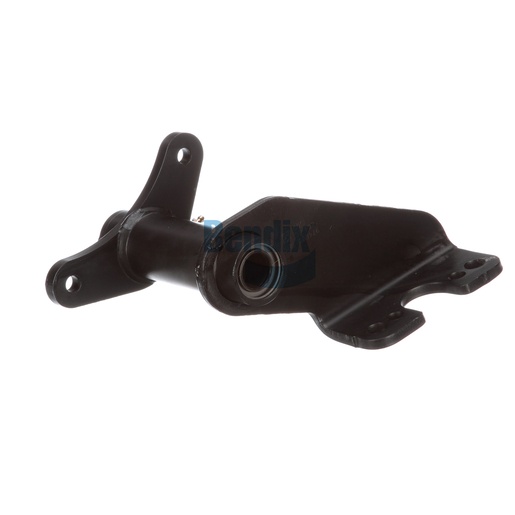

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed for foundation drum brakes, offering superior support and alignment in commercial vehicles. With a net weight of 4.7 kg, this assembly is robust enough to handle heavy-duty applications while ensuring optimal braking performance. The single gusset design adds strength, while the technical specifications guarantee a precise fit within your braking system. This bracket assembly is essential for maintaining the safety and effectiveness of your vehicle's braking capabilities. For genuine Bendix OEM parts, Source One Parts Center is your premier destination for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.107 IN
Length
244.0 mm (9.61 in)
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Camshaft Bracket Angle
70° CW
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.60
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.32 lb
