975002N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

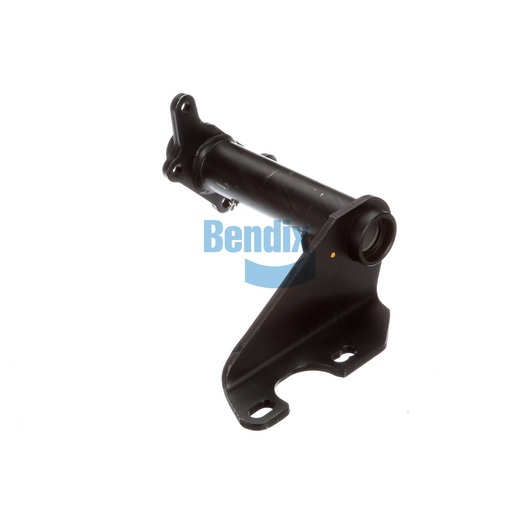

The Bracket Assembly is a key component designed to enhance the reliability of foundation drum brakes in commercial vehicles. Proudly manufactured in the United States, this assembly features a full arm style and a single gusset, offering exceptional strength and durability. With a slack length adjustable between 5.50 and 6.00 inches and a camshaft bracket angle of 42° counterclockwise, it is engineered to provide optimal performance under various conditions. Weighing 6.3 kg (13.93 lb), it is designed to withstand heavy use while maintaining its structural integrity. This assembly is essential for ensuring that your braking system operates effectively, thereby enhancing vehicle safety. For those in need of genuine Bendix OEM parts, Source One Parts Center is the top choice, ensuring quality components that keep your commercial vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Camshaft Bracket Angle
42° CCW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.93 lb
