975415N

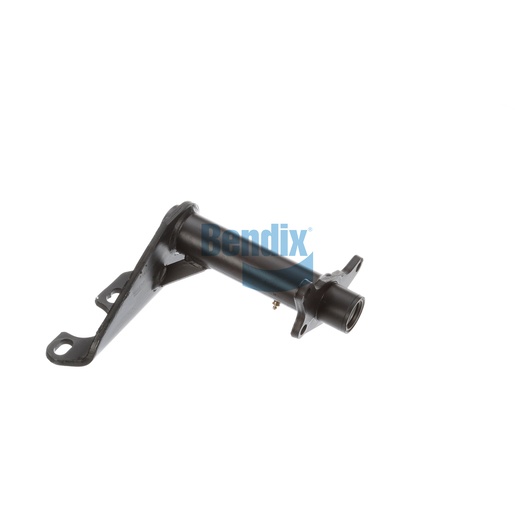

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component for maintaining the integrity of your foundation drum brakes. With its robust construction and technical features, including nylon bushings and a gusseted design, this assembly provides reliable support and stability for your braking system. Weighing 6.4 kg, it is designed to handle the demands of heavy-duty applications, ensuring consistent performance in challenging conditions. The precise engineering allows for easy installation and a perfect fit, reducing downtime and maintenance costs. This bracket assembly is an excellent investment for fleet operators looking to enhance vehicle safety and performance. Source One Parts Center is your premier source for genuine Bendix OEM parts, ensuring you receive the best quality for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.88
Height
292.0 mm (11.5 in)
Length
353.0 mm (13.9 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14 lb
