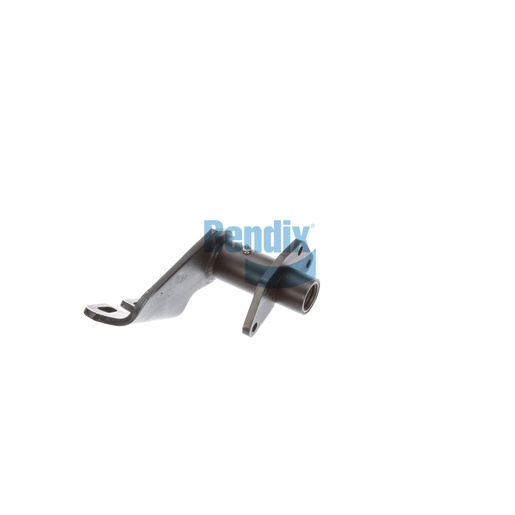

975699N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance your braking system's performance with the Bendix Bracket Assembly, a vital component in foundation drum brakes. This assembly is built to withstand rigorous conditions, ensuring that your braking system operates safely and effectively. Crafted with high-performance materials, it provides exceptional durability and resistance to wear, making it a dependable choice for heavy-duty applications. The precise design ensures a perfect fit, allowing for easy installation and maintenance of your braking system. By incorporating this bracket assembly into your vehicle, you improve the overall stability and effectiveness of your brakes. Trust Source One Parts Center for the best selection of genuine Bendix OEM parts, assuring you of quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
305° CW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.05
Outboard Bushing
Bronze
Inboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.36 lb
