975805N

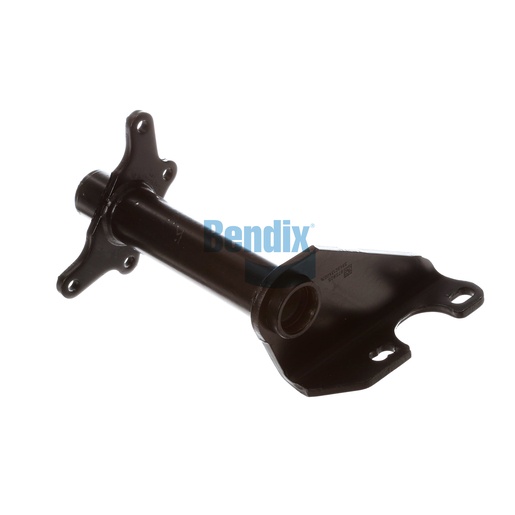

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for foundation drum brakes, offering a blend of strength and durability that ensures optimal brake function. Weighing 5.4 kg and designed with advanced materials, this assembly is crafted in the USA to meet the rigorous demands of commercial vehicles. Its precise engineering allows for easy installation and reliable performance, making it an indispensable part of your braking system. Whether you’re maintaining a fleet or a single vehicle, this bracket assembly promises to enhance safety and efficiency. When you choose Source One Parts Center, you can rest assured that you are purchasing genuine Bendix OEM parts that meet the highest standards of quality.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Camshaft Bracket Angle
40° CW
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.99 lb
