975888N

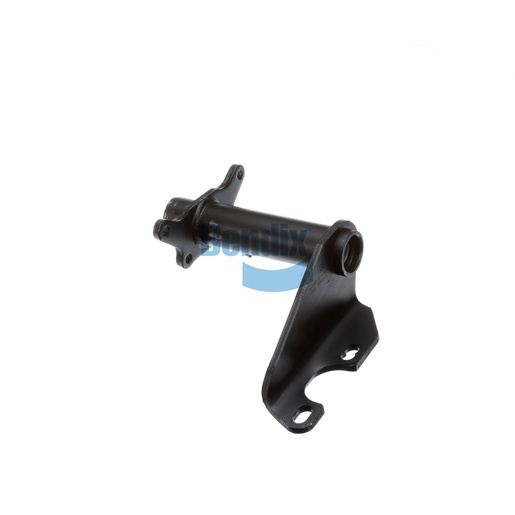

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your truck's braking system with this robust bracket assembly, designed for Bendix foundation drum brakes. This essential component plays a crucial role in ensuring that your brakes function effectively and safely. Weighing 6.4 kg, it is built to withstand the heavy demands of commercial trucking, providing the necessary support for your braking system. Its precision engineering allows for easy compatibility and fitment with various Bendix models, making installation straightforward and efficient. With this bracket assembly, you can trust that your braking system will perform reliably under all conditions. For all your Bendix OEM parts, Source One Parts Center stands out as the best choice, offering quality and expertise you can rely on.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
84° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
