975922N

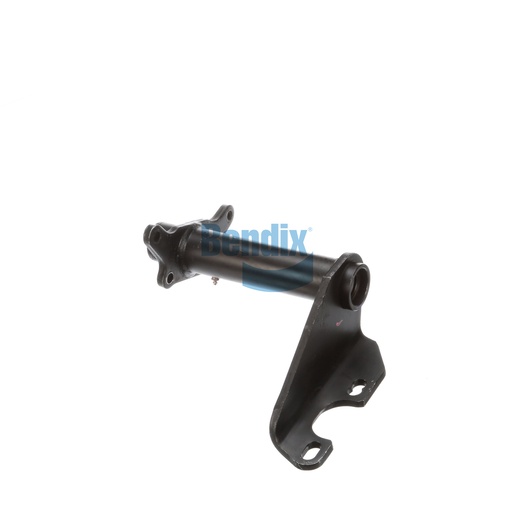

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component of the braking system, ensuring that all parts function cohesively and effectively. Weighing 6.4 kg, this assembly is designed for durability and reliability in the most demanding conditions. Crafted from high-quality materials, it supports optimal alignment and movement of brake components, enhancing overall braking performance. The easy installation process makes it a practical choice for fleet maintenance. By investing in a genuine Bendix Bracket Assembly, operators can significantly improve the safety and efficiency of their vehicles. Source One Parts Center is the go-to source for authentic Bendix OEM parts, ensuring that your commercial vehicles are equipped with high-quality components.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
