975923N

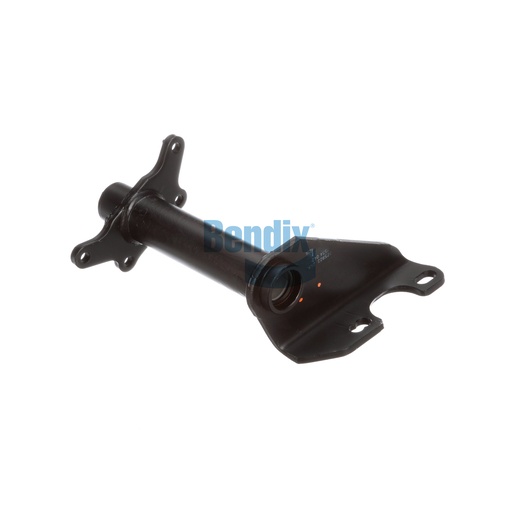

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the efficiency of your truck's braking system with the Bendix Bracket Assembly, designed to support essential components like the air chamber and camshaft. This high-quality bracket is manufactured in the USA, ensuring durability and reliability for demanding applications. Weighing around 6.4 kg, it features a robust design with nylon bushings to reduce friction and wear, ultimately extending the lifespan of your braking system. The precise fit ensures optimal performance, allowing for seamless integration with your truck's existing brake components. For genuine Bendix OEM parts you can trust, Source One Parts Center is your best option, providing top-quality solutions for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
65° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.1 lb
