975928N

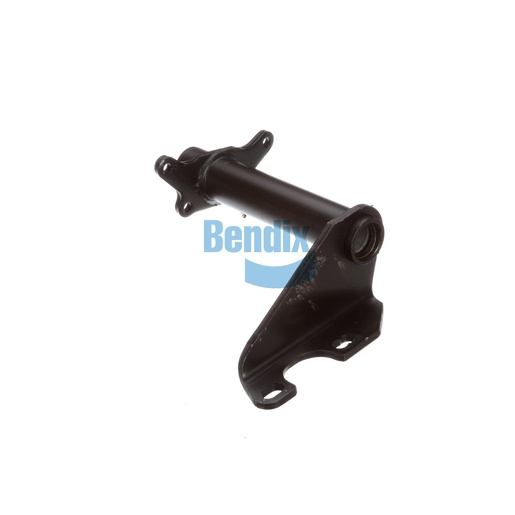

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to offer robust support for your vehicle’s braking system. Weighing in at 6.6 kg, this assembly is built for durability and reliability, making it essential for maintaining the proper alignment of brake components in demanding commercial applications. With its advanced design featuring nylon and bronze bushings, it minimizes wear and enhances operational efficiency, ensuring optimal performance. This bracket assembly is a smart choice for fleet managers focused on safety and efficiency. Source One Parts Center is the ultimate destination for genuine Bendix OEM parts, providing high-quality components tailored for your commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.55 lb
