975929N

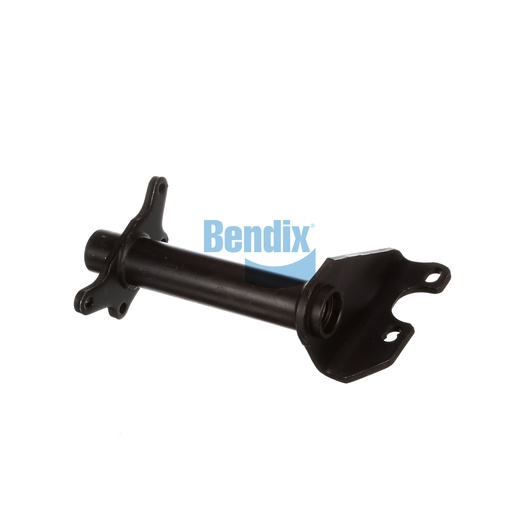

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is a vital support structure in Bendix foundation drum brake systems, ensuring proper alignment and stability during operation. Weighing 6.6 kg, this assembly is designed for strength and durability, making it an essential component for commercial vehicles. Its robust construction helps maintain the integrity of the braking system, enhancing overall safety and performance on the road. By choosing this bracket assembly, fleet operators can ensure that their vehicles are equipped for optimal braking performance. Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring your fleet is always in top condition.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
76° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.5 lb
