975939N

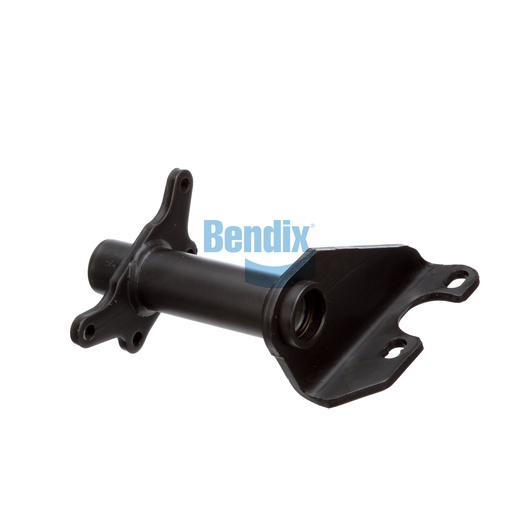

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is designed to enhance the performance of your commercial vehicle's foundation drum brakes. Constructed with a full arm style and a triple gusset for maximum strength, this assembly is built to endure the demanding conditions of heavy-duty applications. The nylon bushings used in both the inboard and outboard positions provide excellent durability while minimizing friction and wear. With a length adjustment between 5.50 to 6.00 inches and a camshaft bracket angle of 72° CW, it ensures precise installation and reliable performance. Weighing 15.98 lbs, this assembly is robust yet manageable for easy installation. Experience the reliability and innovation that Bendix brings to the table. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you have the right components for your vehicle's needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
72° CW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
15.98 lb
