975954N

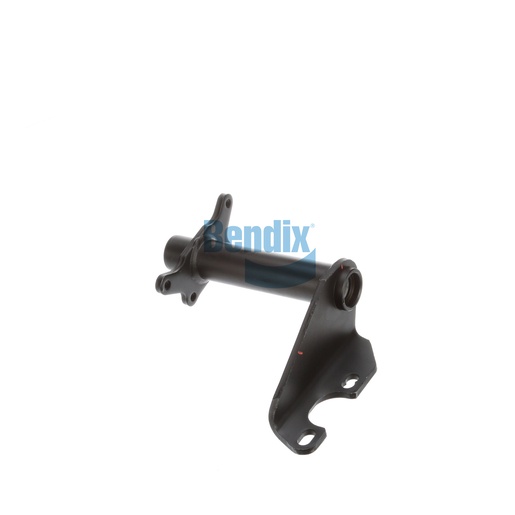

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Reinforce your vehicle's braking system with the Bendix bracket assembly, specifically designed for foundation drum brakes. With a weight of 6.4 kg (14.05 lb), this robust assembly is constructed from high-quality materials, ensuring durability and performance under heavy-duty conditions. Its precise design allows for secure mounting of braking components, enhancing safety on the road. The bracket is easy to install, making it a practical choice for maintenance routines. By choosing this assembly, you are investing in the reliability and efficiency of your braking system. For genuine Bendix OEM parts, Source One Parts Center is the ideal destination, offering quality products you can trust.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CCW
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
14.05 lb
