975958N

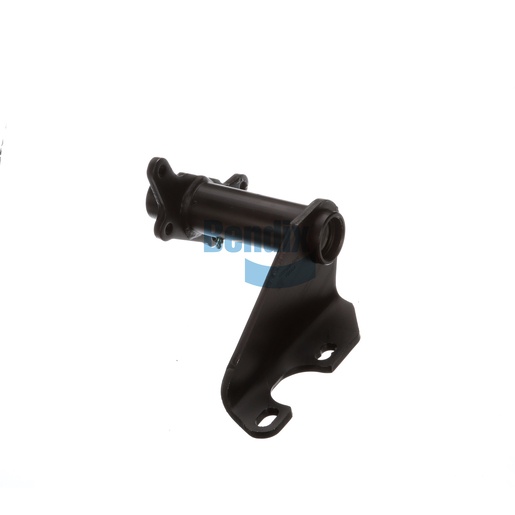

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for enhancing the performance of foundation drum brakes. Made in the USA, this robust assembly weighs 5.7 kg and is designed for optimal durability under heavy-duty conditions. Its precise engineering ensures a perfect fit, contributing significantly to the overall safety and reliability of your braking system. This bracket assembly allows for easy installation, making it a practical choice for fleet maintenance. For genuine Bendix OEM parts that deliver quality and performance, trust Source One Parts Center as your go-to supplier.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
54° CCW
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Country of Origin
United States
Weight
12.5 lb
