976543N

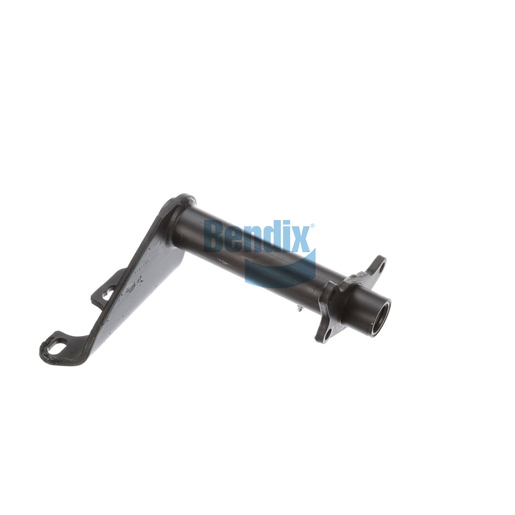

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Strengthen your braking performance with our high-quality Bracket Assembly, designed specifically for Bendix foundation drum brakes. This assembly features durable construction that provides reliable support for air chambers and camshafts, ensuring optimal brake function. Its precise dimensions facilitate straightforward installation, allowing for hassle-free replacements that keep your fleet operational. This assembly is engineered to withstand the demands of heavy-duty use, making it a vital component for any commercial vehicle. For sourcing genuine Bendix OEM parts, trust Source One Parts Center as your top choice for quality and service excellence.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14.55 lb
