976546N

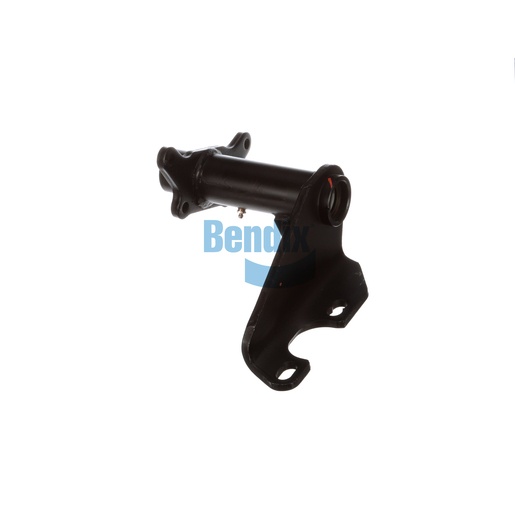

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a critical component of the foundation drum brake system, ensuring durability and stability during braking operations. Weighing 5.8 kg, this assembly is designed to withstand the demands of heavy-duty applications, providing reliability and safety. Manufactured in the United States to meet stringent quality standards, it guarantees a perfect fit and long-lasting performance. This assembly is essential for maintaining the effectiveness of your braking system, contributing to the overall performance of your commercial vehicle. Sourcing genuine Bendix OEM parts is made easy with Source One Parts Center, your trusted destination for high-quality components tailored to your commercial vehicle maintenance needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Height
292.0 mm (11.5 in)
Length
294.0 mm (11.57 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
66° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.8 lb
