$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

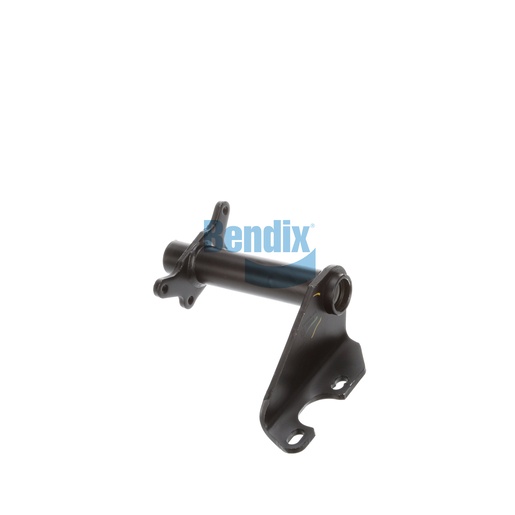

The Bracket Assembly is a key component in your vehicle's foundation drum brake system, providing essential support and stability. Manufactured in the United States, this assembly is designed for heavy-duty applications, weighing 6.3 kg (13.93 lb) and built to endure the rigors of commercial use. Its robust construction ensures that it can withstand various stressors while maintaining the integrity of the braking system. This assembly allows for straightforward installation and compatibility with a range of brake components, making it a practical choice for fleet operators. Investing in a high-quality bracket assembly is crucial for maintaining your vehicle's braking performance and safety. For those seeking the best in reliable parts, Source One Parts Center is the ultimate destination for genuine Bendix OEM components, ensuring your commercial vehicles are always at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CCW
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
13.93 lb
