$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

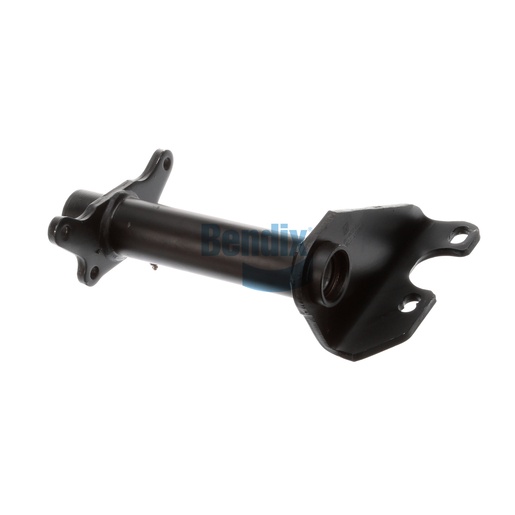

The Bendix Bracket Assembly is vital for ensuring your foundation drum brakes operate effectively and safely. This assembly is manufactured in the United States and weighs 6.4 kg, featuring a robust design with nylon and bronze bushings that enhance durability and performance. Its precise construction allows for optimal alignment of braking components, contributing to the overall efficiency of your braking system. By choosing the Bendix Bracket Assembly, you invest in a reliable solution that enhances your vehicle's safety and responsiveness on the road. For genuine Bendix OEM parts, trust Source One Parts Center, where quality and service come together.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
100° CW
Length (Centerline to Centerline) [IN]
14.31
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Country of Origin
United States
Weight
14 lb
