976560N

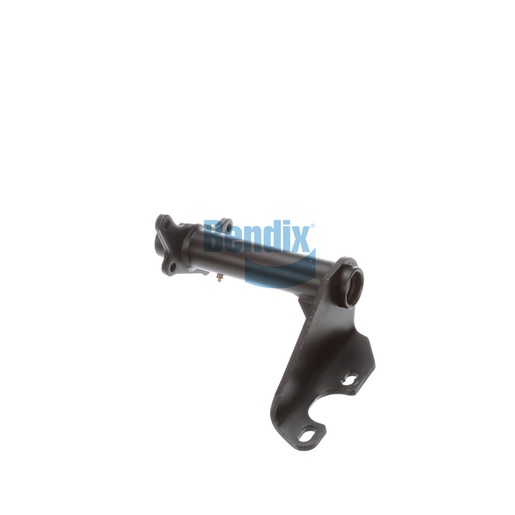

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the reliability and performance of your Bendix foundation drum brakes with this high-quality bracket assembly. Weighing 6.8 kg, this assembly is designed to withstand the stresses of commercial use while providing essential support to your braking system. Featuring robust materials and advanced engineering, it ensures optimal alignment and stability during operation, reducing wear on brake components. The design allows for quick and easy installation, minimizing downtime and keeping your vehicles on the road. This bracket assembly is built to meet stringent OEM specifications, ensuring a perfect fit for your brake system. For sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, committed to delivering quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.93 lb
