976565N

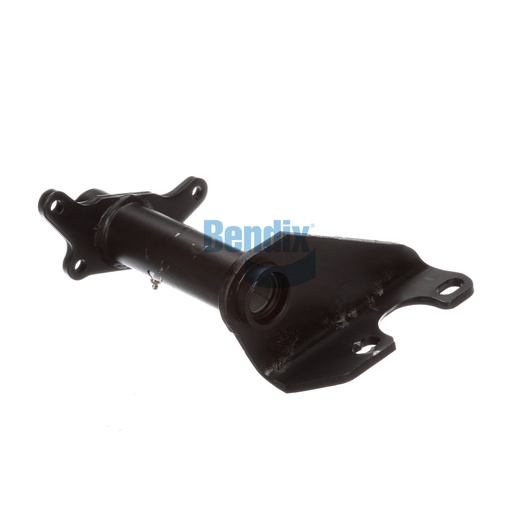

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Bendix's Bracket Assembly is an essential component designed to support the foundation drum brake systems, ensuring stability and reliability during operation. This assembly features a net weight of 4.5 kg (10.01 lb) and is constructed from high-quality materials, ensuring it withstands the demands of heavy-duty applications. The innovative design allows for easy installation and adjustment, making it a versatile choice for various configurations. By maintaining the integrity of your braking system, this bracket assembly plays a crucial role in enhancing the safety and performance of your vehicle. Opting for genuine Bendix parts signifies a commitment to quality and reliability. Source One Parts Center is your premier choice for authentic Bendix OEM parts, providing peace of mind for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
111° CW
Length (Centerline to Centerline) [IN]
12.50
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
10.01 lb
