976580N

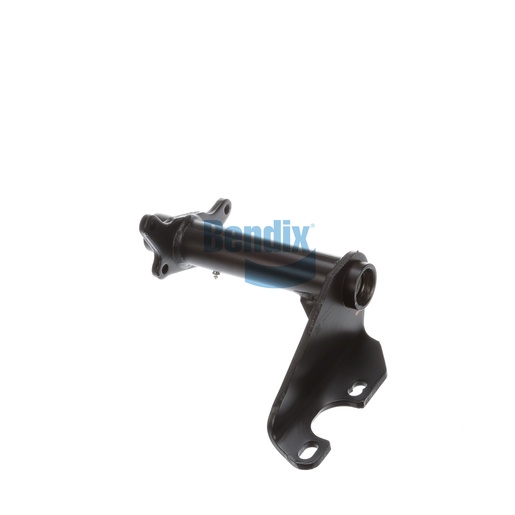

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Strengthen your braking system with the Bendix Bracket Assembly, designed specifically for foundation drum brakes. This assembly, weighing 6.8 kg, is crafted to withstand the rigors of heavy-duty use, providing essential support for optimal brake operation. The thoughtful design, featuring durable bushings and a robust construction, ensures long-lasting performance and reliability. Easy to install, this bracket assembly integrates seamlessly with your existing components. For all your Bendix OEM parts, choose Source One Parts Center; we are committed to delivering authentic, high-quality products that enhance your vehicle's performance.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.94 lb
