976581N

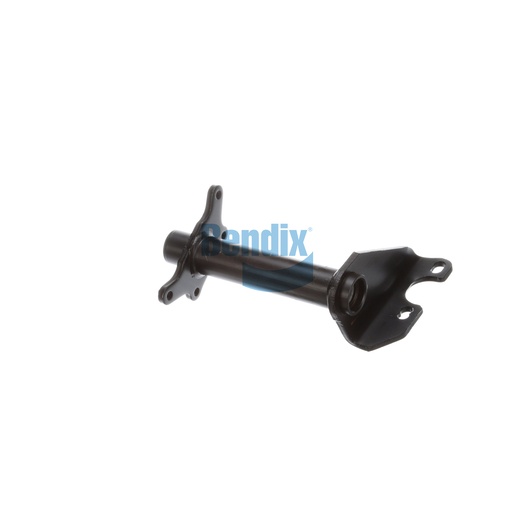

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is vital for maintaining the structural integrity of foundation drum brakes in commercial vehicles. With a weight of 6.7 kg, this assembly features robust construction and precise engineering, ensuring it can withstand the rigors of heavy-duty applications. It includes a combination of nylon and bronze bushings, enhancing its durability and performance. Designed for easy installation, this bracket assembly is essential for enhancing the efficiency and safety of your vehicle's braking system. For those looking to purchase genuine Bendix OEM parts, Source One Parts Center is the best source, offering an extensive inventory of high-quality components tailored for commercial vehicles.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
64° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.8 lb
