$309.95
$371.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

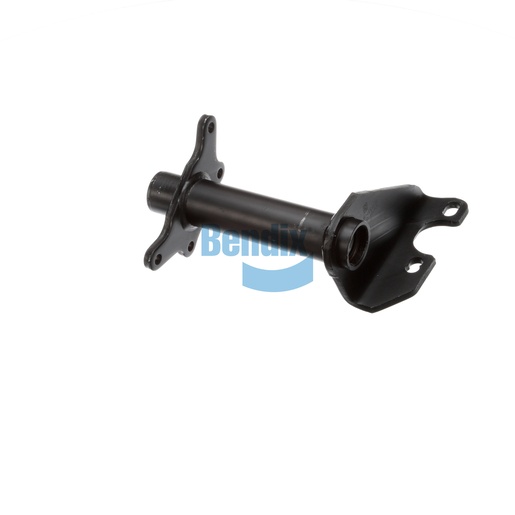

The Bendix Bracket Assembly is a crucial component for maintaining the integrity and performance of your foundation drum brakes. Weighing 6.4 kg, this assembly is designed to securely hold brake components in place, ensuring they function correctly under the stresses of heavy-duty operations. Manufactured in the United States from high-quality materials, it guarantees durability and long-lasting performance. The assembly's innovative design allows for easy installation and a precise fit, reducing maintenance time and enhancing vehicle safety. Choosing genuine Bendix OEM parts is essential for optimal braking performance, and Source One Parts Center is the best place to find these reliable components that keep your commercial vehicles running smoothly.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
56° CW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
14.2 lb
