976762N
Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

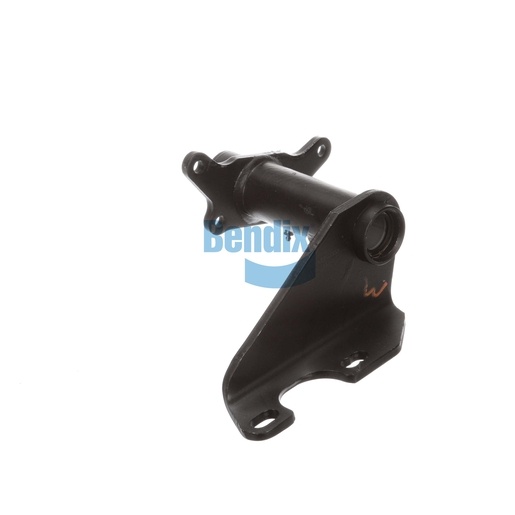

The Bendix Bracket Assembly is a key component in foundation drum brakes, designed for durability and reliability in commercial vehicles. This assembly is built to withstand the rigors of heavy-duty applications, ensuring that your braking system functions optimally under pressure. With a net weight of 5.7 kg, it incorporates robust materials that provide stability and strength. The bracket assembly features a gusset design that enhances its structural integrity, making it a dependable choice for maintaining brake alignment and performance. With its precision engineering, this assembly ensures that your vehicle's braking system operates efficiently and safely. For authentic Bendix OEM parts, Source One Parts Center is the ideal destination for quality and customer satisfaction.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
11.56
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
70° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.65 lb
