976887N

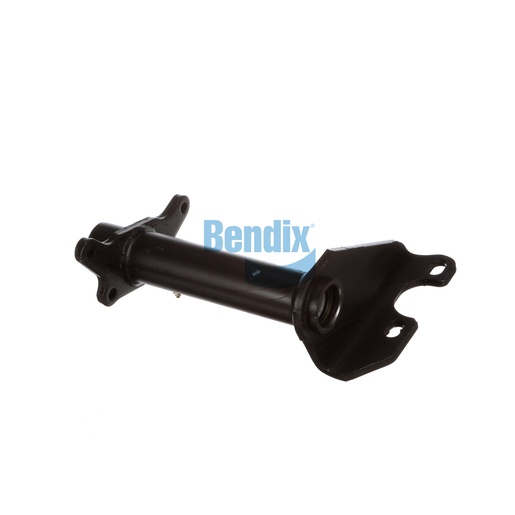

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is an essential component designed to enhance the reliability and performance of your truck's braking system. Crafted with high-quality materials, this assembly features a single gusset design that provides excellent strength and stability, crucial for maintaining the integrity of your braking setup. With a net weight of 6.3 kg, it is specifically engineered to endure the high demands of heavy-duty applications. The assembly includes nylon bushings, further enhancing its durability and efficiency. This bracket assembly is designed for easy installation, making it a practical choice for fleet maintenance and ensuring your brakes function optimally. For those seeking top-tier Bendix products, Source One Parts Center is the premier choice for genuine OEM parts, ensuring you receive the best quality available.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
108° CW
Length (Centerline to Centerline) [IN]
14.31
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.98 lb
