976912N

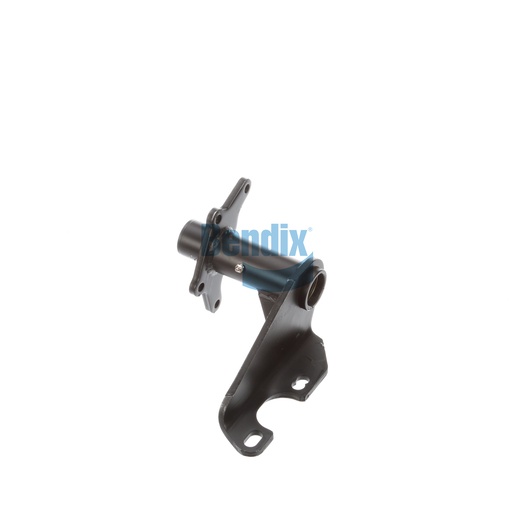

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Upgrade your braking system with this durable bracket assembly, specifically designed for Bendix foundation drum brakes. With a net weight of 5.4 kg (12.0 lb), this assembly features a robust design that supports various components of the braking system, ensuring reliable performance and safety. Engineered with high-quality materials, it withstands the rigors of commercial use, making it a vital part of your vehicle’s braking integrity. Its precise fitment guarantees optimal alignment and functionality of your drum brakes, contributing to enhanced stopping power and vehicle safety. For genuine Bendix OEM parts, Source One Parts Center is the best choice, providing unmatched quality and service.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
333° CCW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12 lb
