976913N

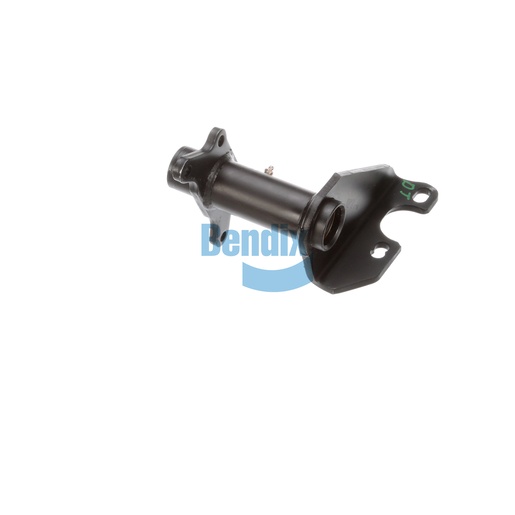

Bracket Assembly
Bendix

BACK ORDERED

Please contact us for information on lead time

Bendix
$389.95 $467.94

Non Returnable

FINAL SALE. No returns or exchanges.

This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.


DESCRIPTION
This Bracket Assembly is a crucial component for ensuring the effective operation of your vehicle's braking system. Designed for Bendix foundation drum brakes, this assembly features a single gusset and full arm style, making it both strong and lightweight, with a net weight of 5.6 kg (12.35 lb). The nylon bushings on both the inboard and outboard sides provide smooth movement and minimize wear, contributing to the overall longevity of your brake components. Suitable for various commercial applications, this bracket assembly is engineered for easy installation and reliable performance. Trust Source One Parts Center for your Bendix OEM parts, where quality meets dependability for your commercial vehicle needs.

SPECIFICATIONS

VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.56
Length
268.0 mm (10.55 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
333° CW
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
12.35 lb
