976950N

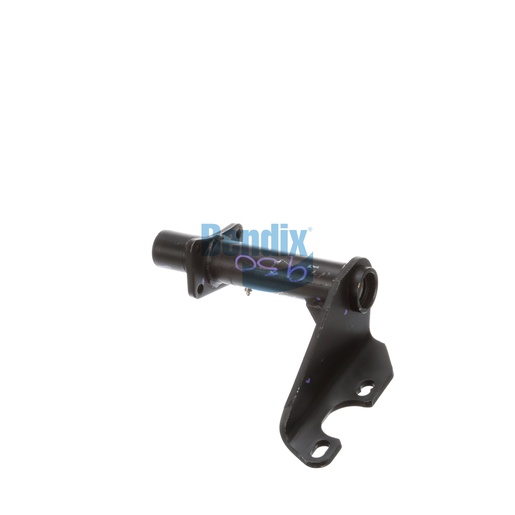

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Experience unparalleled support and stability with the Bendix Bracket Assembly, designed for foundation drum brakes. This assembly, made in the United States, weighs 6.3 kg and features a single gusset design with durable nylon and bronze bushings that provide excellent performance under heavy loads. Its precise engineering ensures optimal alignment for effective braking, making it a critical component of your brake system. With the Bendix Bracket Assembly, you can trust that your braking system will function smoothly and reliably, enhancing safety on the road. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your top choice for quality and authenticity.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
15.06
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Camshaft Bracket Angle
69° CCW
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.95 lb
