977035N

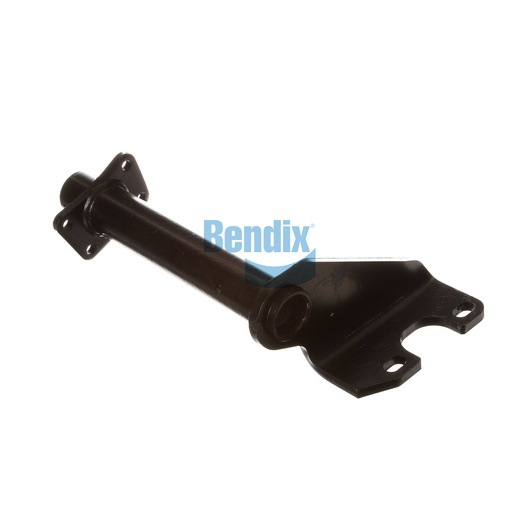

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
Enhance the durability and effectiveness of your braking system with the Bendix Bracket Assembly, specifically designed for foundation drum brakes. This assembly is crucial for securing brake components and ensuring they function correctly under pressure. Weighing 6.4 kg, it features a robust design that withstands the toughest conditions, making it ideal for heavy-duty applications. The bracket assembly is engineered with precision, allowing for a perfect fit that minimizes installation time and maximizes reliability. Its thoughtful design incorporates high-quality materials, resulting in a long-lasting component that contributes to overall vehicle safety. When you need genuine Bendix OEM parts, Source One Parts Center is the ultimate choice, providing you with the trusted components necessary to keep your commercial vehicles performing at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Centerline to Centerline) [IN]
18.50
Length (Basic Weld Set)
2.563 IN
Camshaft Bracket Angle
288° CW
Height
292.0 mm (11.5 in)
Width
365.0 mm (14.37 in)
Length
470.0 mm (18.5 in)
Length (Slack Length)
5.50 IN - 6.00 IN
Gusset Angle
72°
Harmonized System (HS) Code
870830
Arm Style
Scalloped
Gusset
Single
Country of Origin
United States
