977087N

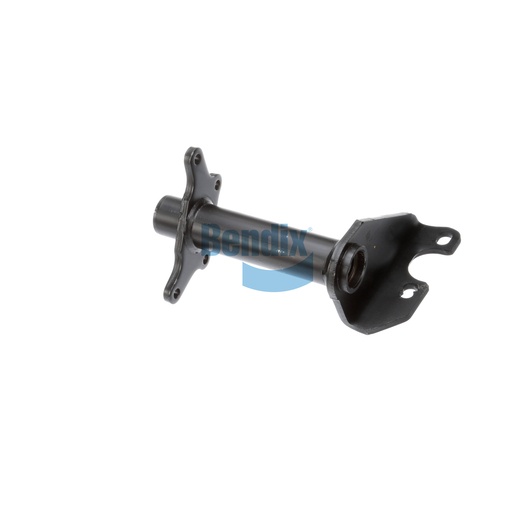

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is a vital component for foundation drum brakes, designed to provide maximum support and stability under heavy loads. Weighing 6.1 kg, this sturdy assembly is manufactured in the USA, ensuring adherence to rigorous quality standards. Its innovative design includes features like nylon and bronze bushings to enhance durability and performance. By securing essential brake components, this bracket assembly plays a crucial role in maintaining the efficiency and safety of your braking system. Investing in this high-quality part means fewer maintenance issues and improved reliability on the road. For the best selection of Bendix OEM parts, Source One Parts Center is your premier destination for quality and reliability.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
13.47
Camshaft Bracket Angle
30° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
13.54 lb
