$489.95
$587.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

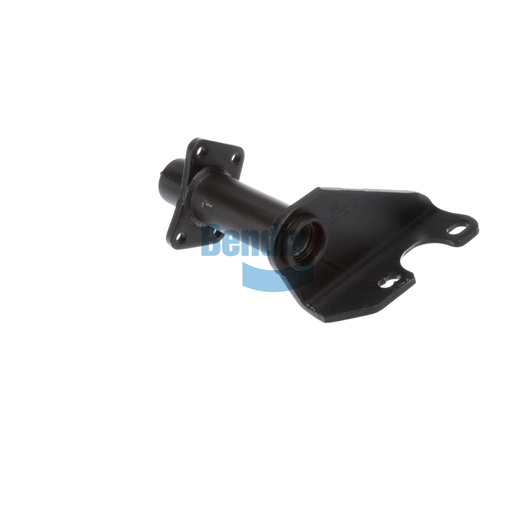

The Bendix Bracket Assembly is a critical component for foundation drum brakes, designed to support the effective operation of your vehicle’s braking system. Weighing 11.2 lbs, this assembly is built with durable materials, ensuring it can withstand the demands of heavy-duty applications. The precision engineering of this bracket allows for optimal alignment of braking components, enhancing overall safety and performance. With features like bronze and nylon bushings, this assembly is designed for longevity and reliability, minimizing wear over time. Invest in this bracket assembly to maintain the integrity of your braking system on the road. Source One Parts Center is the best source for genuine Bendix OEM parts, ensuring your commercial vehicles perform at their best.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
10.81
Camshaft Bracket Angle
30° CW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Outboard Bushing
Bronze
Arm Style
Full
Inboard Bushing
Nylon
Gusset
Single
Country of Origin
United States
Weight
11.2 lb
