977312N

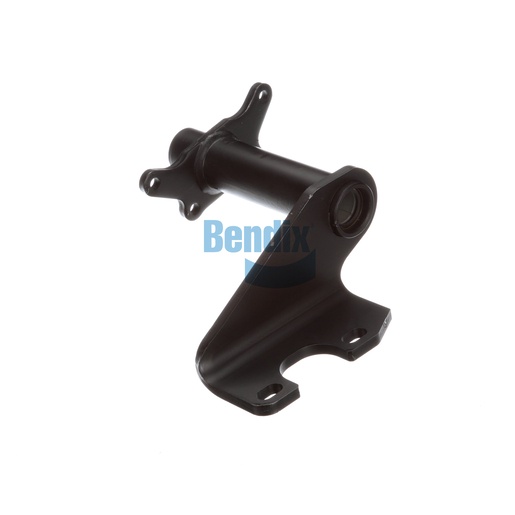

Bracket Assembly
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bracket Assembly is an essential component for maintaining the integrity and performance of your Bendix foundation drum brakes. With a scalloped arm style and durable nylon bushings, this assembly is engineered to enhance stability and support, ensuring optimal brake function during operation. Weighing 7.3 kg (15.98 lb), it offers a robust construction that can withstand the rigors of heavy-duty use. The bracket's design allows for precise alignment and secure attachment, which is crucial for efficient braking performance and vehicle safety. This assembly is perfect for fleet managers looking to maintain their trucks in peak condition, as it minimizes downtime and improves response times. For all your Bendix OEM parts, trust Source One Parts Center to provide genuine, high-quality components that ensure your vehicles run smoothly and safely.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Camshaft Bracket Angle
100° CCW
Length (Centerline to Centerline) [IN]
14.31
Length (Basic Weld Set)
2.563 IN
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
15.98 lb
