$389.95
$467.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

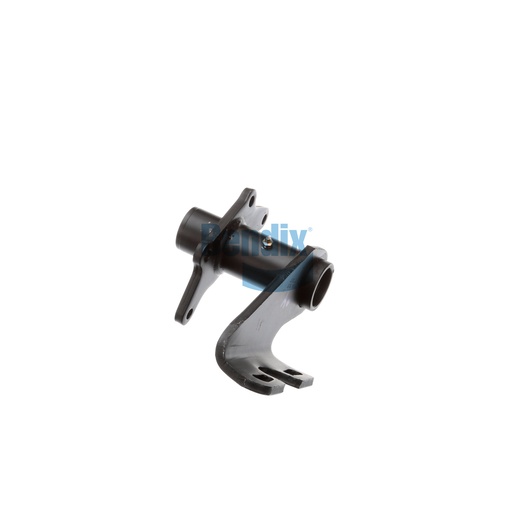

The Bendix Bracket Assembly is a vital part of any commercial vehicle's braking system, ensuring that components remain securely in place for optimal performance. Weighing 4.9 kg and crafted with precision, this assembly features high-quality nylon bushings that enhance its durability and functionality. Its scalloped arm style allows for better load distribution and provides a robust support structure for brake components. This assembly is designed for easy installation, making it a practical choice for fleet maintenance. Beyond its structural integrity, the assembly contributes to consistent brake performance, improving vehicle safety and reliability. Source One Parts Center is the premier source for genuine Bendix OEM parts, ensuring that your commercial vehicle is equipped with the best components available.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Camshaft Bracket Angle
314° CCW
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.82 lb
