$379.95
$455.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

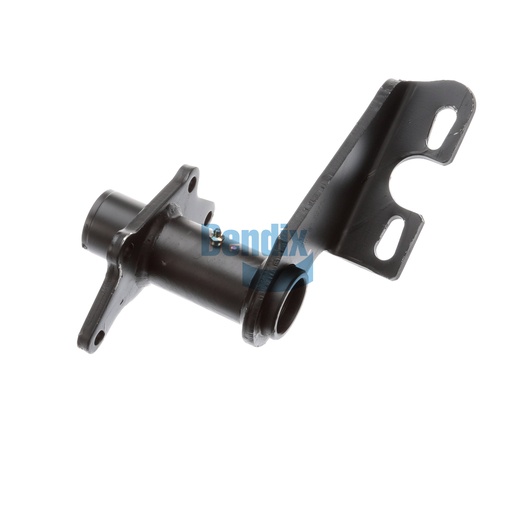

The Bendix Bracket Assembly is an essential component for maintaining the structural integrity of your vehicle's braking system. With its advanced design and durable materials, this assembly, weighing 4.8 kg, provides reliable support for air chambers and camshafts in commercial applications. The nylon bushings ensure smooth operation and reduce wear on vital components, which translates to improved performance and longevity. This bracket assembly is engineered to withstand the toughest conditions, making it a smart investment for fleet managers looking to enhance vehicle reliability. Trust Source One Parts Center for your Bendix OEM parts needs, where authenticity and quality are always a priority.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length
236.0 mm (9.29 in)
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
314° CW
Width
365.0 mm (14.37 in)
Length (Slack Length)
5.50 IN
Harmonized System (HS) Code
870830
Length (Centerline to Centerline) [IN]
9.31
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Arm Style
Scalloped
Country of Origin
United States
Weight
10.51 lb
