$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

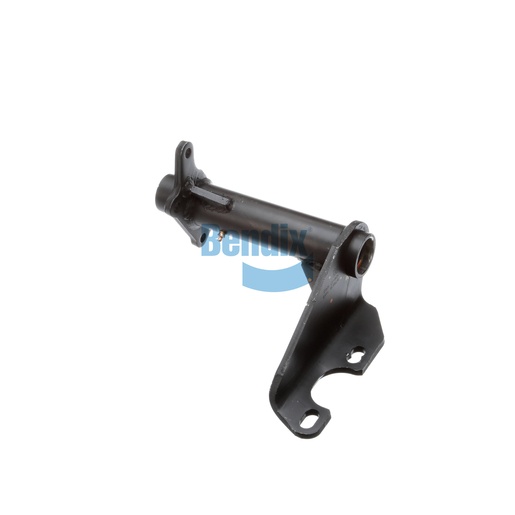

The Bracket Assembly from Bendix is a fundamental component designed to enhance the performance and stability of your foundation drum brakes. With a robust construction featuring a triple gusset design and full arm style, this assembly ensures maximum support and durability under heavy loads. Its adjustable slack length ranging from 5.50 to 6.00 inches allows for precise installation, while the camshaft bracket angle of 30° CCW ensures optimal alignment. Made from high-quality nylon and other durable materials, this bracket is built to last. For sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing quality solutions for your commercial trucking needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Camshaft Bracket Angle
30° CCW
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14.35 lb
