978617N

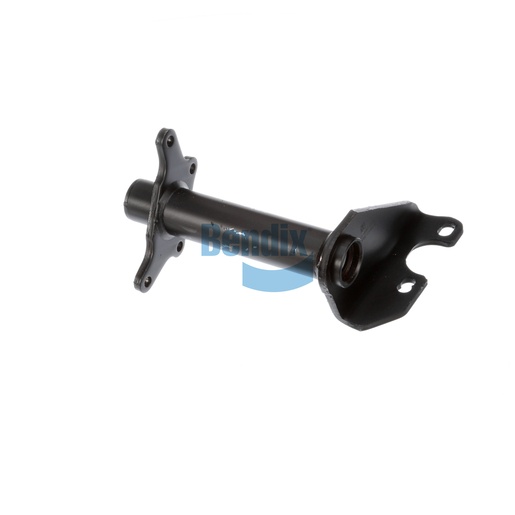

Bracket Assembly
Bendix
AVAILABLE
4 are currently available
Ships within 11-13 business days
$399.95
$479.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Bracket Assembly is essential for maintaining the operational efficiency of foundation drum brakes in commercial vehicles. This assembly is designed to provide robust support and secure mounting for various brake components, ensuring optimal performance and reliability. Weighing 6.6 kg, it is constructed from high-quality materials that can withstand the stresses of heavy-duty applications. Its precise dimensions and design allow for easy installation, making it a crucial part of any brake system. This assembly not only enhances braking performance but also contributes to overall vehicle safety. For genuine Bendix OEM parts, Source One Parts Center is your go-to source, guaranteeing quality and reliability for your commercial vehicle needs.
SPECIFICATIONS
VMRS
013-017-009: Bracket - Chamber, Position Not Specified
Length (Basic Weld Set)
1.063 IN
Length (Centerline to Centerline) [IN]
14.31
Height
292.0 mm (11.5 in)
Camshaft Bracket Angle
30° CW
Length
364.0 mm (14.33 in)
Width
365.0 mm (14.37 in)
Gusset Angle
40°
Length (Slack Length)
5.50 IN - 6.00 IN
Harmonized System (HS) Code
870830
Arm Style
Full
Inboard Bushing
Nylon
Outboard Bushing
Nylon
Gusset
Triple
Country of Origin
United States
Weight
14.59 lb
